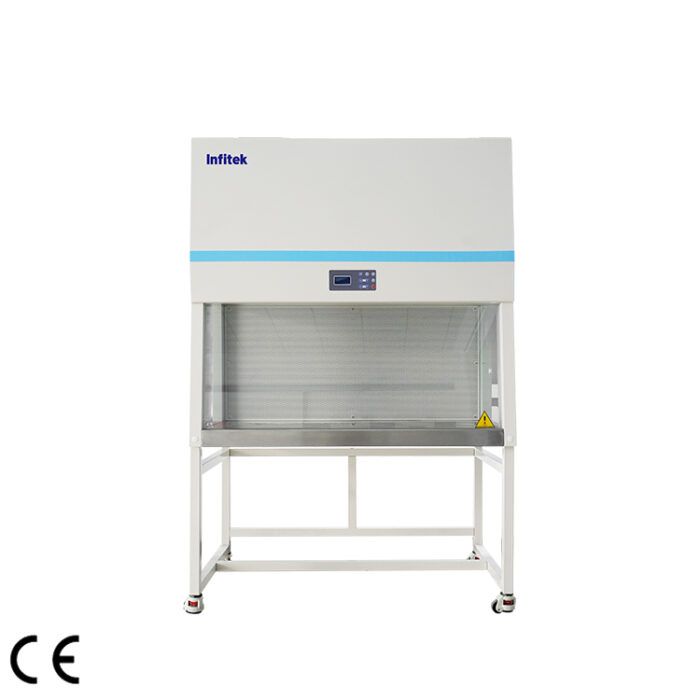

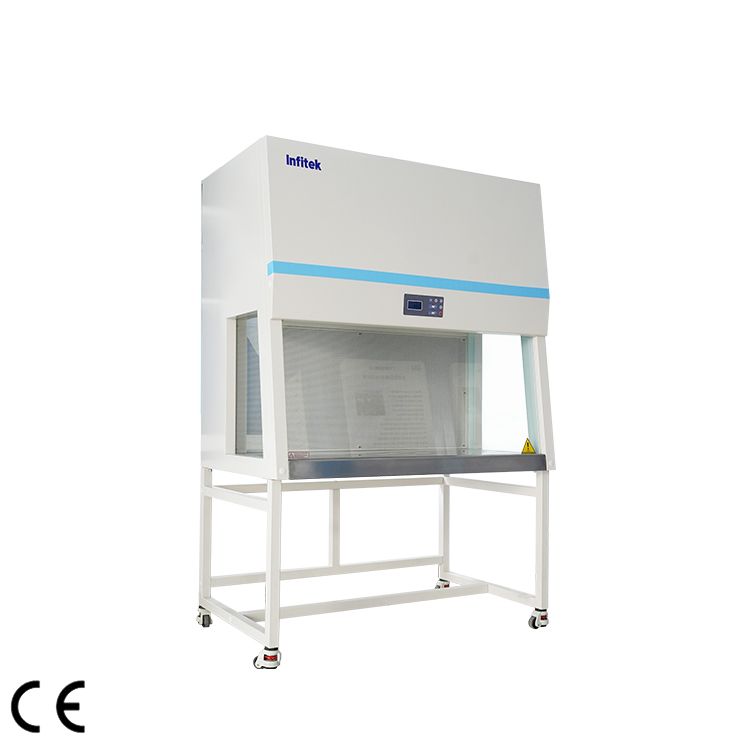

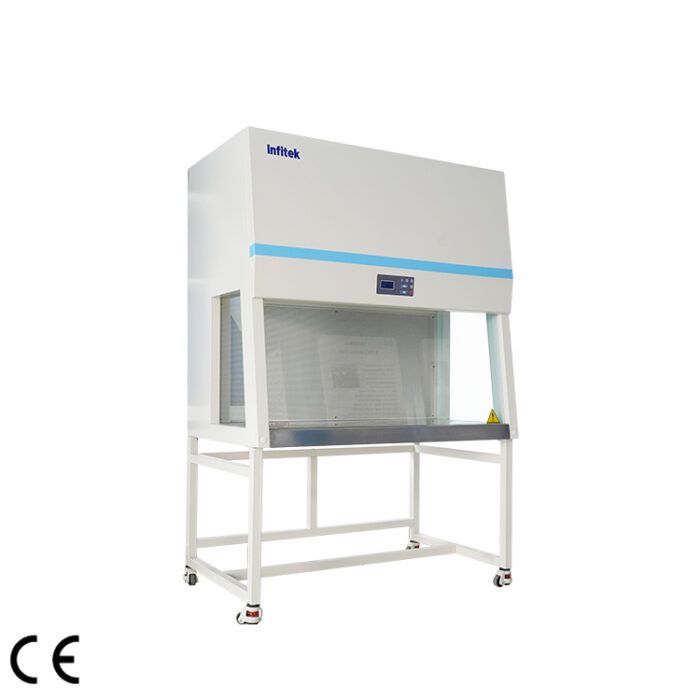

Laminar Flow Cabinet, Horizontal Type, LCB-HY Series

Description

The laminar flow cabinet is a local purification device installed in a clean room or a general room, which can maintain a high degree of cleanliness on the operating table according to the requirements of product production or other purposes. It is widely used in areas where high cleanliness is required, such as laboratories, biopharmaceuticals, hospitals, LED optoelectronics, circuit boards, microelectronics, hard disk manufacturing, food processing and other fields.

Features

1. Horizontal laminar flow, single-sided operation;
2. Made of high-quality cold-rolled steel plate, welded structure, and surface electrostatic spraying to enhance the stability of the cabinet;
3. Equipped with a pre-filter to preliminarily filter large particulates, extending the service life of the HEPA filter.
4. The working zone is made of SUS304 material, which is beautiful and corrosion-resistant;
5. The front and side windows are made of 5mm thick tempered glass;
6. Caster design makes it easy to move and fix the cabinet;
7. LCD screen, real-time display of runningstatus (airflow velocity, timer, UV lamp time, HEPA filter running time).
8. With ultraviolet lamp and fan appointment timing function;
9. Unit conversion function, converts units between PA and m/s;
10. Equipped with UV lamp, LED lamp, and waterproof socket;
11. Complete alarm system:

• Ultra-high filter pressure alarm
• Filter replacement failure alarm
• Low airflow velocity alarm

12. Interlocking function: UV lamp and front window; UV lamp and fan, fluorescent lamp; fan and front window.

Specification
