- Eyepiece: Wide field WF10X/22mm
- Nosepiece: Quadruple nosepiece
- Observation Tube: Tilting trinocular, Interpupillary 53-75mm
- Infinity Plan Achromatic Objectives 4X, 10X, 40X, 100X
- Siedentopf head, inclined at 30°, light split 100:0/ 0:100

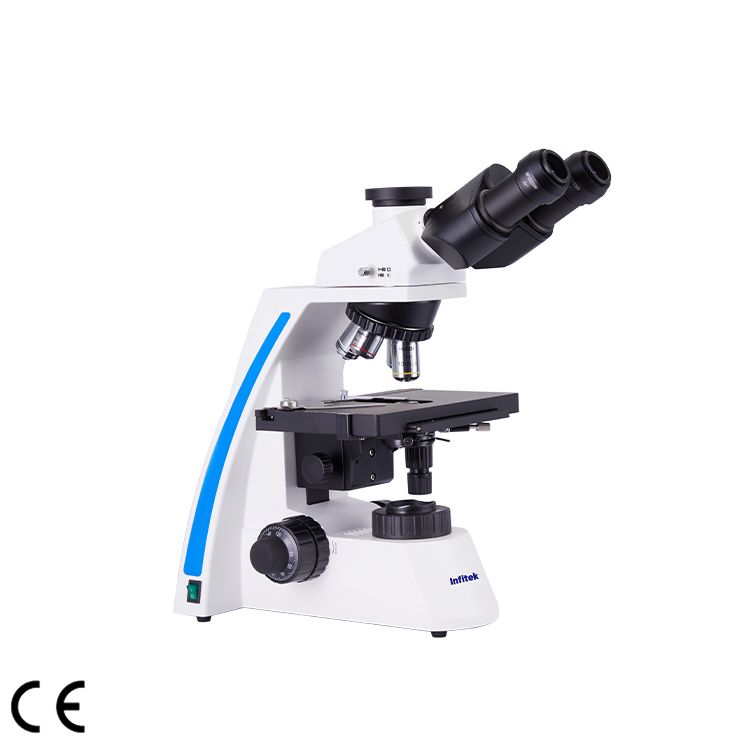

Biological Microscope, MSC-B31M
الوصف
The biological microscope features an infinity optical system and standard LED Kohler illumination, supporting versatile observation modes such as brightfield, darkfield, and phase contrast. It is equipped with a precise coaxial coarse and fine focusing mechanism, a mechanical stage, and a dedicated port for external digital cameras, all while providing a wide field of view.
Specification
| Model | MSC-B31M |
| Optics | Infinity optical system |
| Observation Tube | Tilting trinocular, Interpupillary 53-75mm |
| Viewing Head | Siedentopf head, inclined at 30°, light split 100:0/ 0:100 |
| Eyepiece | Wide field WF10X/22mm |
| Objective | Infinity Plan Achromatic Objectives 4X, 10X, 40X, 100X |
| Infinity Plan Achromatic Objective 20X (Optional) | |
| Nosepiece | Inward quadruple nosepiece |
| Stage | Double-layer mechanical stage,
Size: 210×140mm, Moving range:76×50mm |
| Focusing | Coaxial coarse and fine adjustment, with locking and limit device, fine division 2μm, coarse stroke 40mm per rotation, fine stroke 0.2mm per rotation, focusing range 24mm |
| Transmitted Illumination | Abbe Condenser NA1.25 |
| LED light source, adjustable brightness, Kohler lighting | |
| Camera Port | TV1XC-MO (camera not included) |
| External Dimension
(L*W*H) |
400*210*425mm |
| Phase Contrast | Plan achromatic phase contrast objectives Plan 10X/20X/40X/100X PH (optional) |
| Phase contrast condenser turret (optional) | |
| Dark Field | Dark field condenser (optional) |
