- Concentration Range: 1×104-3×107cells/mL
- Diameter Range: 5-200μm
- Viability Range: 0-100%
- Sample Volume: 10 µL (GPC100, GR100) / 20 µL (GPC200, GR200)
- Equipped with two fluorescent excitation wavelengths and two detection filters

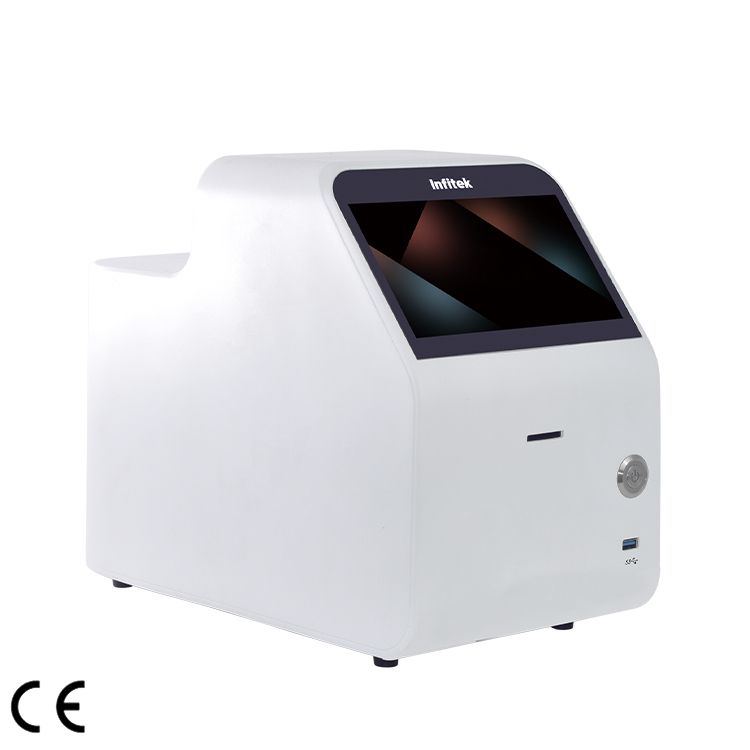

Fluorescence Cell Analyzer, FACC-Tuger
الوصف
It is equipped with two fluorescent excitation wavelengths and two detection filters. It also offers a bright field view of all samples through its digital microscope optics. The analyzer enables routine analysis of cell density, viability, and transfection efficiency. The pre-configured apps ensure easy and safe execution of all tests.
Features
- AutofocusAutomated Cell Analyzer
This cell analyzer enables multi-channel and multi-field sampling. It provides automatic focusing of samples to ensure clear images and accurate results. The use of light sources and filter wheel design greatly enhances system stability and operability.
- Five Fields of View per Sample with High Repeatability and Fast Image Processing
During the counting process, this cell analyzer captures 5 fields of view per sample and simultaneously collects bright field and dual-channel fluorescence image data. The larger sample acquisition volume ensures counting accuracy. It can complete fluorescence analysis of a single field of view within 4 seconds and deliver results for 6 samples in just 2 minutes*.
**Results from a single fully automated test of six samples of suspension culture cells at a concentration of 1×106 cells/mL.
- Supporting Various Cell Applications
This cell analyzer comes standard with excitation wavelengths of 475nm and 545nm, and emission wavelengths of 530nm and 605nm*, to meet diverse fluorescence application requirements. The software features multiple analysis modes, including bright field, trypan blue, fluorescence, and organoids.
*It comes standard with two sets of excitation and emission wavelengths to support various fluorescence assays, such as AO, PI, AOPI, GFP, and RFP.
- FDA 21 CFR Part 11 Compliant Operation
It provides features such as multi-user levels and permissions management, encrypted data export, electronic signatures and records, audit trails, and more. These functionalities ensure accurate, reliable, and consistently stable results while also providing the capability to identify illegal or tampered records.
- AO/Pl Double Fluorescent Staining
- Celltransfection-GFP Fluorescence Detection
Specifications
| Model | FACC-Tuger |
| Concentration Range | 1×104-3×107 cells/mL |
| Diameter Range | 5-200μm |
| Viability Range | 0-100% |
| Sample Volume | 10 µL (GPC100, GR100) / 20 µL (GPC200, GR200) |
| Single-Sample Analysis Time (Single View) | Bright field < 1 second, Fluorescence < 12 seconds (AO/PI) |
| Single-Sample Analysis Time (Five Views) | Bright field < 8 seconds, Fluorescence < 54 seconds (AO/PI) |
| Six-Sample Analysis Time (Five Views) | Bright field < 55 seconds, Fluorescence < 334 seconds (AO/PI) |
| Excitation Wavelengths | 475nm, 545nm |
| Emission Wavelengths | 530nm, 605nm |
| Fluorescence Light Source | Blue LED / Green LED |
| Bright Field Light Source | White LED |
| Output Formats | JPG, PDF, CSV, FCS (optional) |
| Features | 6-slot counting high-throughput, flow cytometry data, organoid analysis, FDA, LIMS interface, dilution calculator |
| Screen | 7-inch multi-touch color display |
| Camera | Industrial-grade CMOS, 6.3 megapixels (high-definition color) |
| Storage | Standard 128 GB hard drive (other capacities optional) |
| Focus Mode | Autofocus |
| Other Interfaces | 2 USB ports, 1 HDMI port, and 1 RJ45 network port |
| Applicable Consumables | Six-chamber counting slide |
| Dimensions (W*D*H) | 190*276*367 mm |
| Weight | 4.4 kg (excluding power adapter) |
