- Speed: 15,000rpm
- RCF: 21,380×g
- Capacity: 24×1.5/2mL, 36×0.5mL, 4×PCR 8-strip tubes, 12×5mL, 18×5mL
- 9 selectable acceleration and deceleration levels

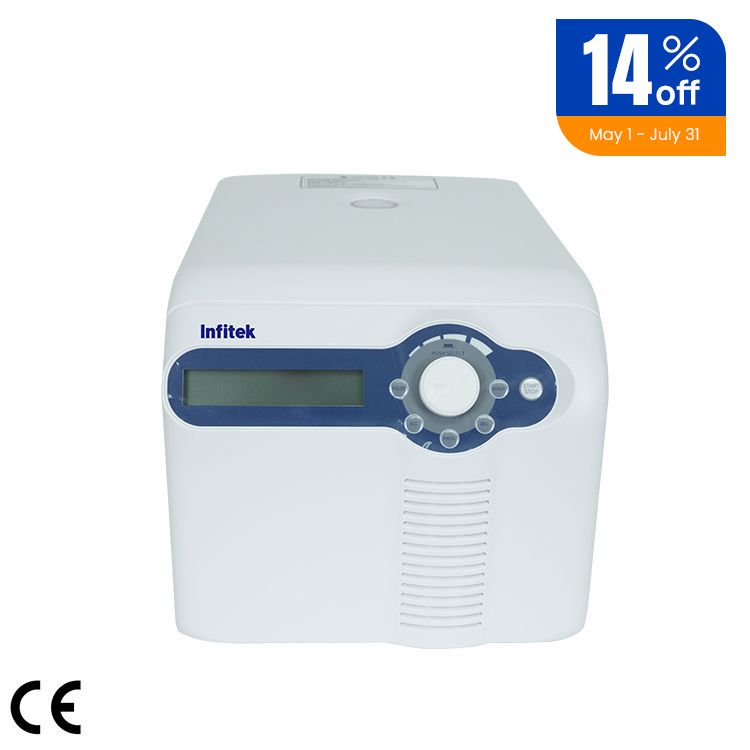

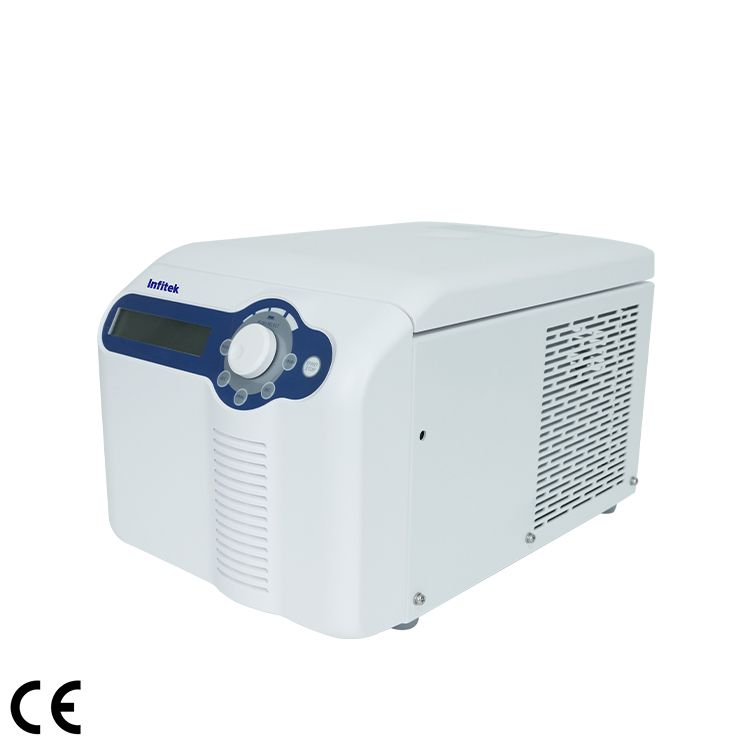

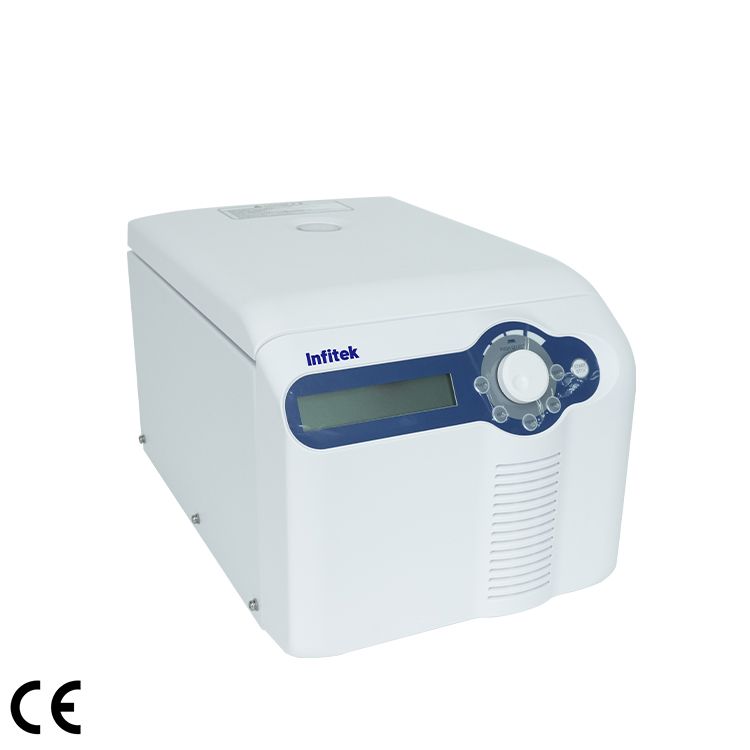

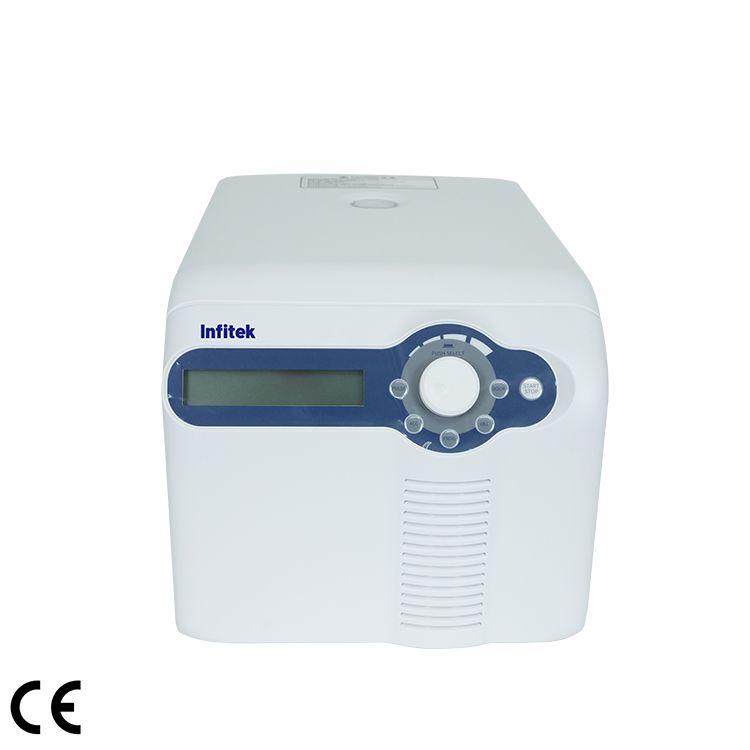

High Speed Centrifuge, CFG-15DP
الوصف
Application
It’s ideal for centrifugation of temperature-sensitive samples, such as live cells and proteins. It can be used in a multitude of applications, including pelleting of DNA and RNA samples, pelleting of PCR amplified nucleic acids, separating antibody and protein precipitates, performing enzymatic tests, removing cell debris from cell homogenates, and fractionating bacterial and yeast cells.
Features
- Magnetic motor lock design allows the centrifuge lid to be closed with one hand.
- Sound alert after centrifugation is completed.
- Up to 9 programs can be stored according to experimental needs.
- Triple-sealed rotor ensures biological safety.
- High-strength aluminum alloy rotor is fully autoclavable at 121 °C.
- Equipped with dynamic balancing detection; imbalance prompts an alert.
- 9 selectable acceleration and deceleration levels; smooth braking for better separation results.
- Five rotor options available, compatible with 0.2mL, 0.5mL, 1.5mL, 2mL, and 5mL centrifuge tubes, as well as 8-strip PCR tubes.
- External condensation tray prevents water buildup inside the centrifuge chamber.
- Centrifuge chamber inner wall coated with PTFE for corrosion resistance in various chemical environments.
Specification
| Model | CFG-15DP |
| Max. Speed | 15,000rpm (200~15,000rpm), increment: 100 rpm |
| Max. RCF | 21,380×g, increment: 10×g |
| Capacity | 24×1.5/2mL, 36×0.5mL, 4×PCR 8-strip tubes, 12×5mL, 18×5mL |
| Run Time | 30s-99min; HOLD (continuous running) |
| Acceleration/Deceleration Time | 25s ↑ 25s ↓ |
| Motor Type | Brushless DC motor |
| Safety Features | Dual door lock, over-speed detection, over-temperature detection, status self-diagnosis system |
| Electricity | Single-phase, 200~240V, 50/60Hz, 400W;
100~120V, 50/60Hz, 490W; |
| Sound Emission | ≤64dB |
| Other Functions | Speed/RCF conversion, Short spin function, Real-time operation progress display, Sound alert, 9 selectable acceleration and deceleration levels, 9 programmable memory slots |
| External Dimensions (W*D*H) | 280*400*240mm |
| Net Weight | 8.8kg |
