Featuring an ultra-large capacity design of 14.4 L, this series of centrifuges can process 12 bags of 400–500 mL whole blood at one time to ensure high production efficiency. It is widely used in blood centers, pharmaceuticals, biological products, and other industries.

Features

Drive: Driven by an AC variable-frequency motor. Equipped with a SOFT braking function to prevent sample resuspension.
Speed Control: Takes 14 seconds to accelerate to the maximum speed, and 15 seconds to decelerate from the maximum speed to zero.
Display: Intelligent control with a touch panel and dual LCD/LED display. Operating parameters are automatically memorized, and RCF can be set directly.
Refrigeration: Utilizes an imported CFC-free compressor unit and control valve, featuring low vibration, rapid cooling, and low noise, while meeting environmental protection standards.
Rotor: Features a standby cooling function. Rotors are autoclavable (121°C, 20 minutes).
Body Structure: Premium steel housing and stainless steel chamber.
Safety: Rotor identification function (optional), electronic safety door lock, and multiple protection features against lid opening, overspeed, and imbalance.
Control: 10 acceleration and deceleration rates, storage for 40 custom operating modes; inching/short-spin function supports diverse centrifugation

Specifications

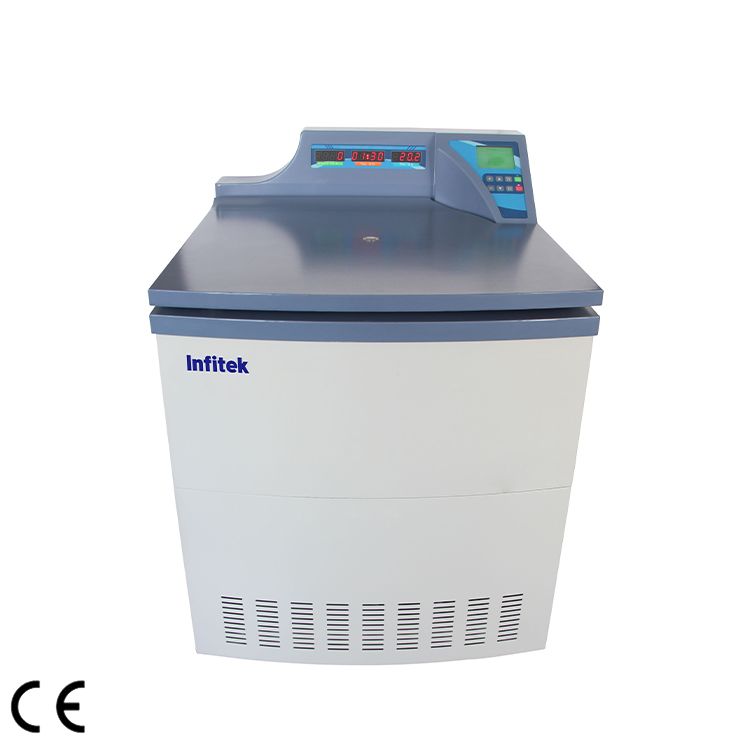

Model	CFGR-8DL
Max. Speed	8000 rpm
Max. RCF	12166 × g
Max. Capacity	6 × 2400 mL
Speed Accuracy	±20 rpm
Timer Range	0–99 h 59 min 59 s
Temperature Range	-20°C ~ 40°C
Temperature Accuracy	±1°C
Compressor	High-performance compressor with CFC-free refrigerant
Noise	≤ 58 dB
Motor	AC variable-frequency motor, microprocessor control
Electricity	AC 220 V, 50 Hz, 35 A
Dimensions	9608601200 mm
Weight	500 kg

Compatible Rotors and Tubes

Rotor No.	Max. Capacity	Max. Speed	Max. RCF	Tube Dimensions
No.1 Angle Rotor	6×500 mL	8000 rpm	11680×g	Φ74×168 mm
No.2 Angle Rotor	6×1000 mL	7200 rpm	12166×g	Φ97×175 mm
No.3 Swinging Rotor	6×2400 mL	4200 rpm	6130×g	24 × 200 mL quadruple blood bags
No.3 Swinging Rotor	6×2400 mL	4200 rpm	6130×g	12 × 450–500 mL blood bags
No.4 Swinging Rotor	6×2×1000 mL	4000 rpm	5000×g	Biopharmaceutical applications
