- Quadruple nosepiece
- Widefield WF10X/ F.N.22 mm eyepiece
- Abbe N.A.1.25 condenser with Iris diaphragm
- With epi-illumination system and transmitted illumination

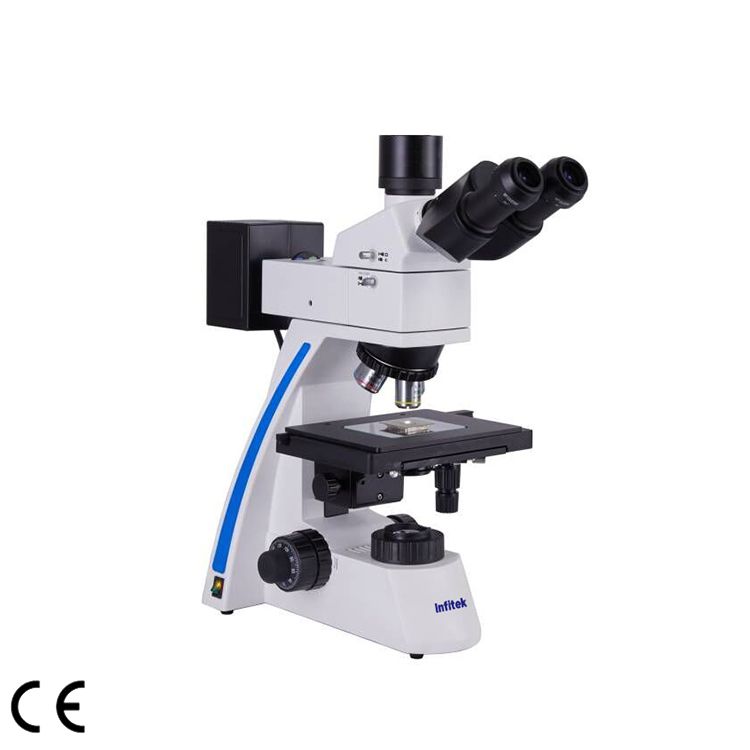

Metallurgical Microscope, MSC-M31J
الوصف
Application
The metallurgical microscope is primarily used in manufacturing fields such as semiconductors, FPD, circuit boards, metallic materials, and precision tools, and is suitable for teaching and research.
Features
- Supports polarizing observation.
- Long working distanceplan objectives.
- High-resolution and high-contrast imaging.
- Widefield eyepieces with F.N. 22mm for a flat and comfortable view.
Specification
| Model | MSC-M31J |
| Optics | Infinity optical system |
| Observation Tube | Tilting trinocular, Interpupillary 55~75mm |
| Viewing Head | Siedentopf head, inclined at 30° |
| Eyepiece | Wide field WF10X/ F.N.22 mm |
| Objectives | Long working distance plan objectives
L Plan 5X/0.12, working distance 23.6 mm |
| Long working distance plan objectives
L Plan 10X/0.25, working distance 17.7 mm |
|
| Long working distance plan objectives
L Plan 20X/0.40, working distance 10.4 mm |
|
| Long working distance plan objectives
L Plan 50X/0.55, working distance 7 mm |
|
| Long working distance plan objectives
L Plan 100X/0.8, working distance 3.2 mm (optional) |
|
| Nosepiece | Inward-facing quadruple nosepiece |
| Stage | Double-layer mechanical stage,
Size: 210×140mm, Moving range:75×50mm |
| Condenser | Abbe N.A.1.25 condenser with Iris diaphragm, height adjustable |
| Focusing | Coaxial coarse and fine adjustment, with locking and limit device, fine division 2μm, coarse stroke 40mm per rotation, fine stroke 0.2mm per rotation, focusing range 24mm |
| Epi-illumination System | Kohler illumination with filters including green, blue, yellow and gross glass |
| Transmitted Illumination | Abbe condenser N.A.1.25 |
| White LED with adjustable brightness |
