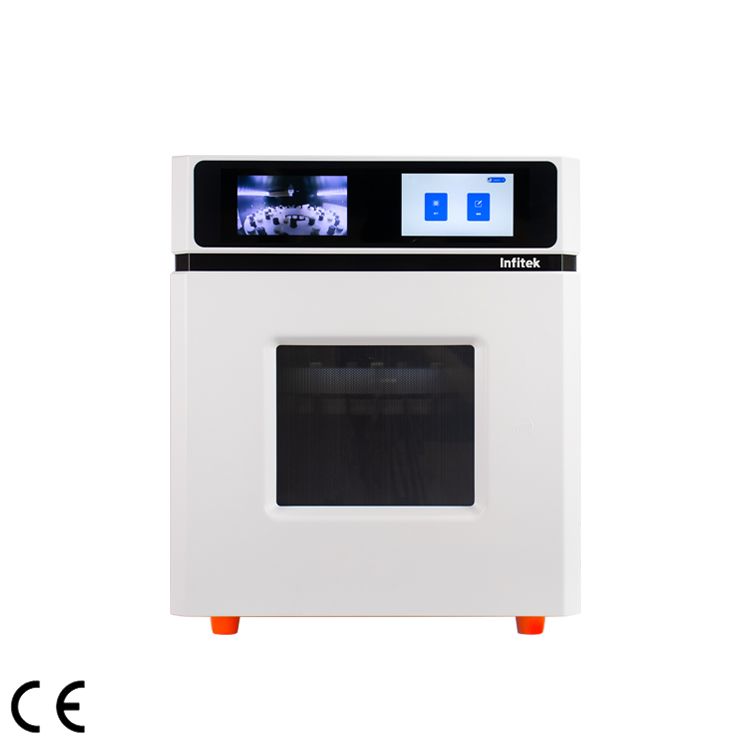

Microwave Digestion System, MDS-Tan40

Application

Microwave Digestion Workstation is widely used in environmental monitoring, food safety, environmental monitoring, public health and disease prevention and control, petrochemical industry,education and research, metallurgy and other fields.

Features

• Comprehensive safety guarantee, combined with anti-corrosion capability

The furnace cavity is made of Grade 316L stainless steel.

The 3D adjustable, explosion-proof security door, installed with buffer and choke (to prevent microwave leakage), is self-sealing, impact-resistant and with interlocking linkage mechanism.

The aerospace composite fiber outer vessel, wholly sprayed with PFA coating, boasts both higher anti-corrosion and higher pressure-resistance levels, compared to those of PEEK materials.

• Dual magnetron inverter control system ensures consistent sample digestion

Microwave Digestion Workstation adopts dual magnetron inverter control system and high-frequency closed-loop PID control, thereby realizing microwave continuous non-pulse output, more uniform microwave field in the cavity, higher energy utilization rate, and consistent sample digestion.

• Two LCD screen, displaying real-time operation and experiment status

The 7-inch color LCD touch screen displays real-time data, such as temperature, power, time, and steps. Swift switch to display of coordinate curves greatly facilitates users to better know what is going on with the experiment.

The 5-inch color LCD screen allows clear, real-time observation of operation inside the furnace cavity.

• Full-vessel pressure control technology

The The high-pressure digestion vessel adopts the safety bolt structure; while the auto-release vessel uses the elastic pressure relief and self-sealing technology. Under normal operation conditions, the vessels are completely sealed without leakage.

Under over-pressure conditions, Both paths will trigger a pressure release to ensure a passive pressure protection.

• Full-vessel precise temperature control and monitoring, ensuring safety and digestion performance

Non-contact mid-infrared sensors at bottom monitor and visualize real-time temperature change of sample solution inside each digestion vessel. The whole vessel temperature control system effectively monitors abnormal conditions during digestion experiment. Once abnormal temperature is detected, the vessel immediately stops microwave emission and starts to sound the alarm, so that experimental safety is not disturbed.

• Smart software operation

The vessel, running on the Android operating system, is convenient and multi-functional. It offers many functions, such as electronic signature, hierarchical permission and audit trail. The software automatically identifies model of the turntable and automatically counts the number of vessels, making the experiment easier and faster, with the absence of tedious manual counting and input.

• Various supporting tools, making experiment easy and convenient(Optional)

Various tools are supplied to reduce workload for operators and improve the work efficiency of sample preparation. For example, a mobile and flexible tool trolley is able to transfer rotor loaded with sample into and out of furnace cavity, avoiding direct contact between operator and digestion vessel for safety concerns.
