- Maximum Specimen Size: 40mm×32mm
- Vertical Specimen Stroke: 60mm
- Horizontal Feed: 28mm

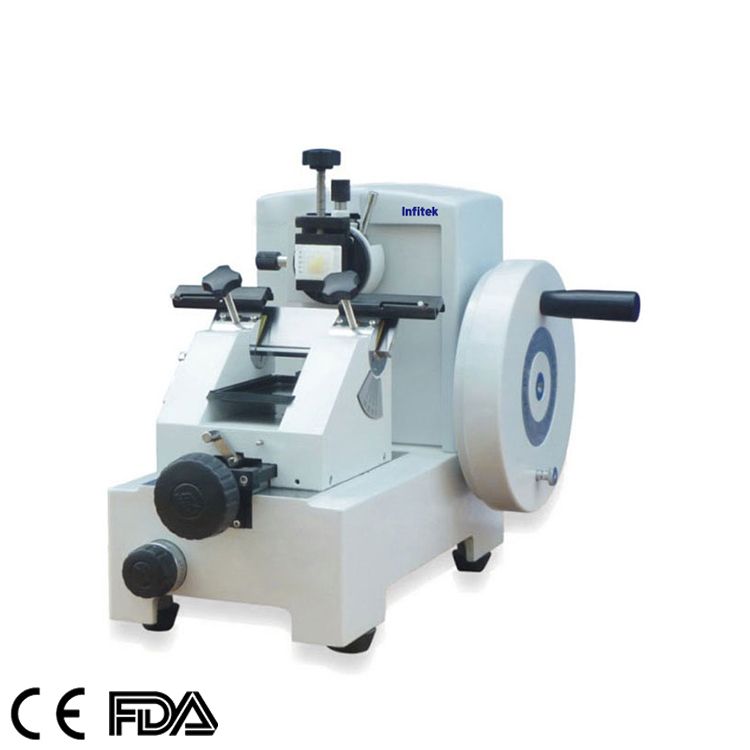

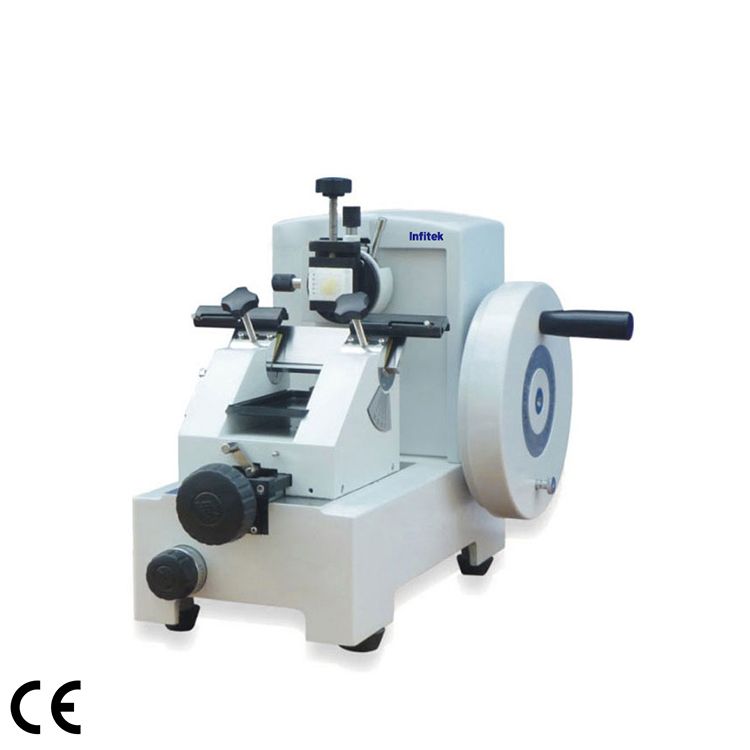

Rotary Microtome, RMT-150
الوصف
RMT-150 Rotary Microtome integrates internationally advanced technology and design to ensure high precision, stable performance, and easy operation. This product can produce even, high-quality continuous sections, and has become a very popular type of microtome.
Technical Specifications
| Model | RMT-150 |
| Section Thickness Setting Range | 1 – 35μm for continuous sectioning; The sectioning thickness can be set at any value ＞35μm |
| Trimming Thickness Setting Range | 0 – 500μm |
| Minimum Setting of Sectioning Thickness | 1μm |
| Specimen Holder Rotation | at any angle within 360 degrees |
| Specimen Orientation | XY – 8° |
| Total Horizontal Specimen Feed | 28 mm |
| Vertical Specimen Stroke | 60 mm |
| Movement Range of the Base of Blade Holder Base | 0-50mm (front to back) |
| Maximum Specimen Size | 40mm*32mm |
| Precision Error | ±5％ |
| Dimensions | 420×330×330 mm (W×D×H) |
| Net weight | 19kg |
